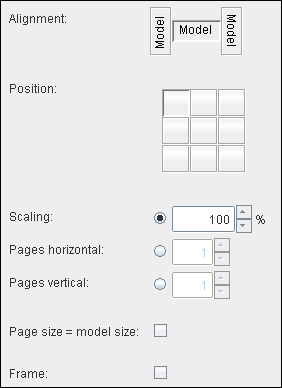

This tab contains functions used to define the size and position of the model data. It is recommended to first test the settings and to view the respective results in the Preview area.
- Direction
This option enables to define the reading direction of the model.
- Position
This option allows to determine which position the model will have within the print area. The model can be arranged horizontally or vertically on one or several pages.
- Scale
This option allows to set the scale of the printing relatively to the original model size.
- Arrange pages horizontally
Select this option when the model is to be arranged on a given number of juxtaposed pages. The number of pages necessary will depend on the model proportions.
- Arrange pages vertically
Select this option when the model is to be arranged on a given number of superposed pages. The number of pages necessary will depend on the model proportions.
- Page size = Model size
If this option is selected, the page size will be adapted to the model size. The Scale option will automatically be selected and executed according to the data entered previously. Please note that the settings regarding the page size contained in the tab Size and Margins will thereby be ignored.
This option is to be used provided the presentation is saved as a graphics file and only one file is to be created.
- Frame
Draws a black frame around the model.
